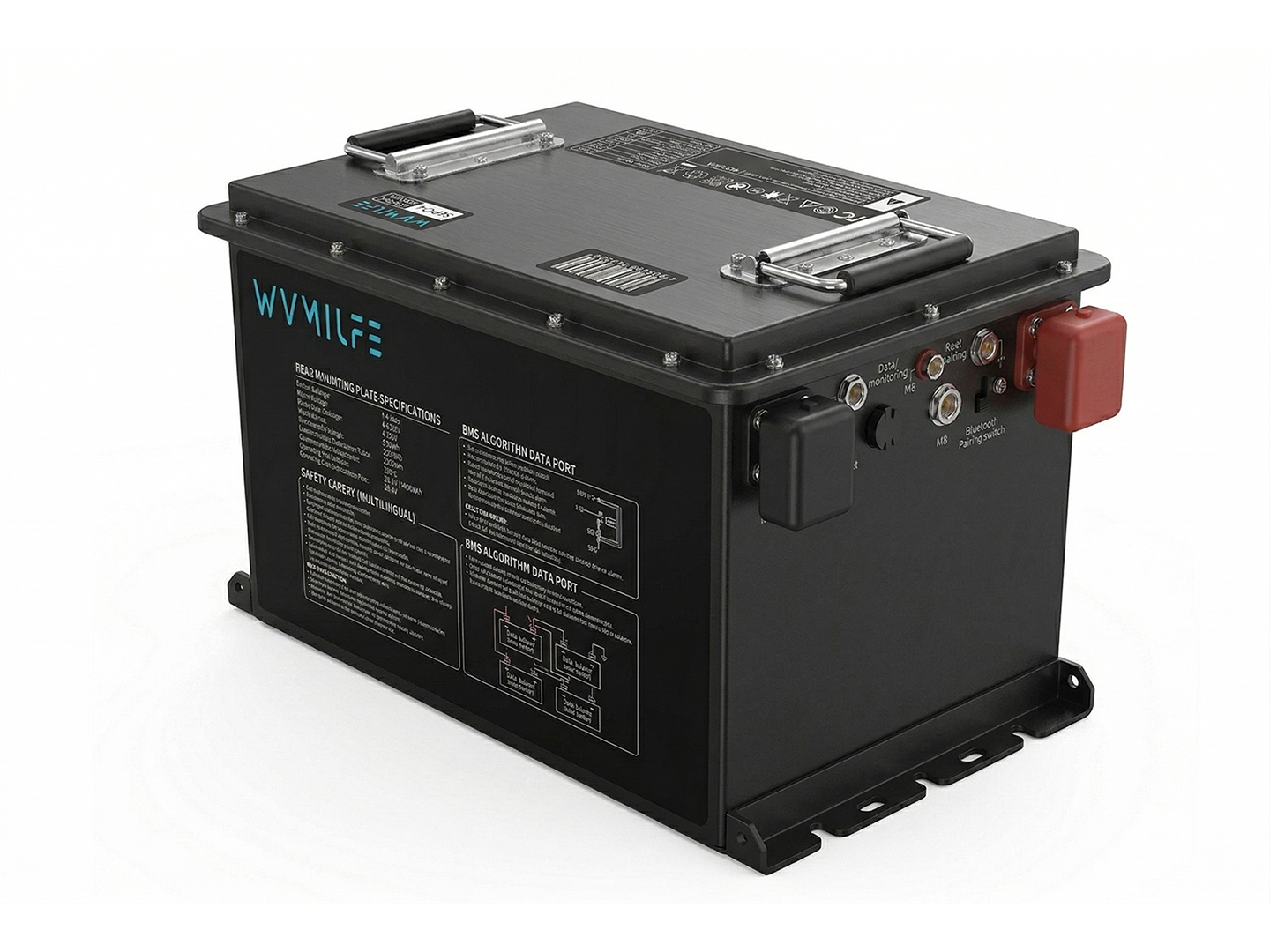

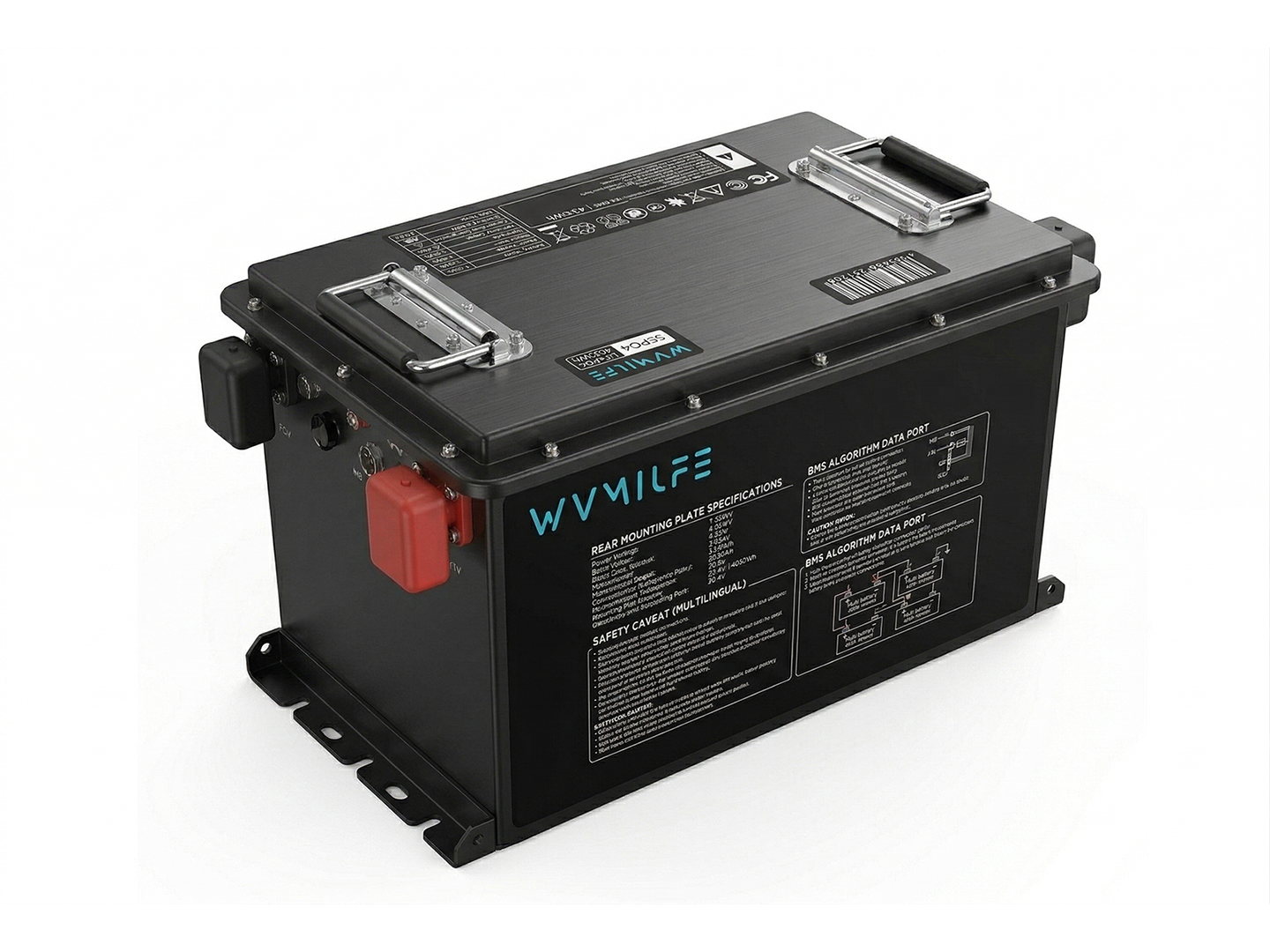

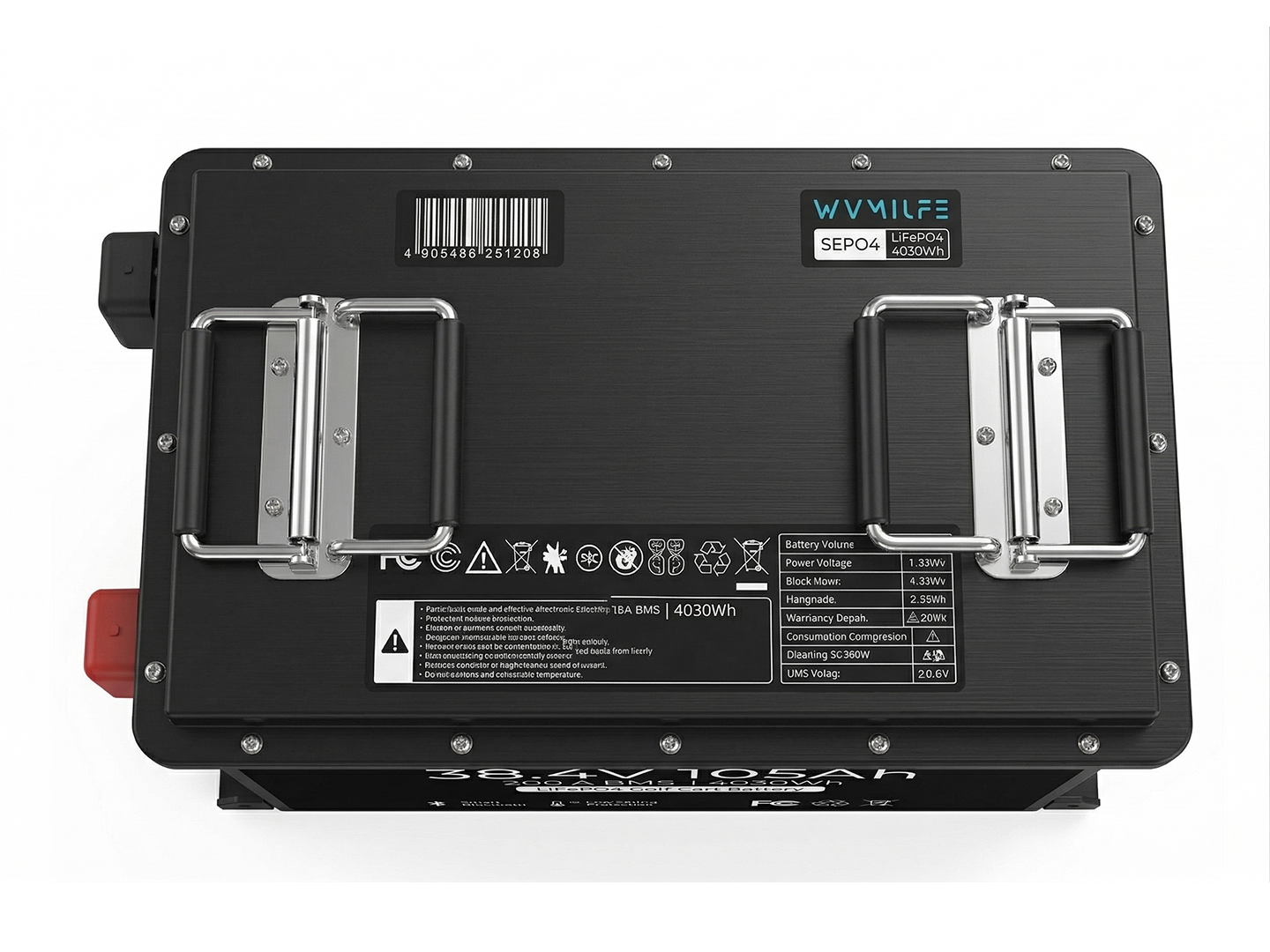

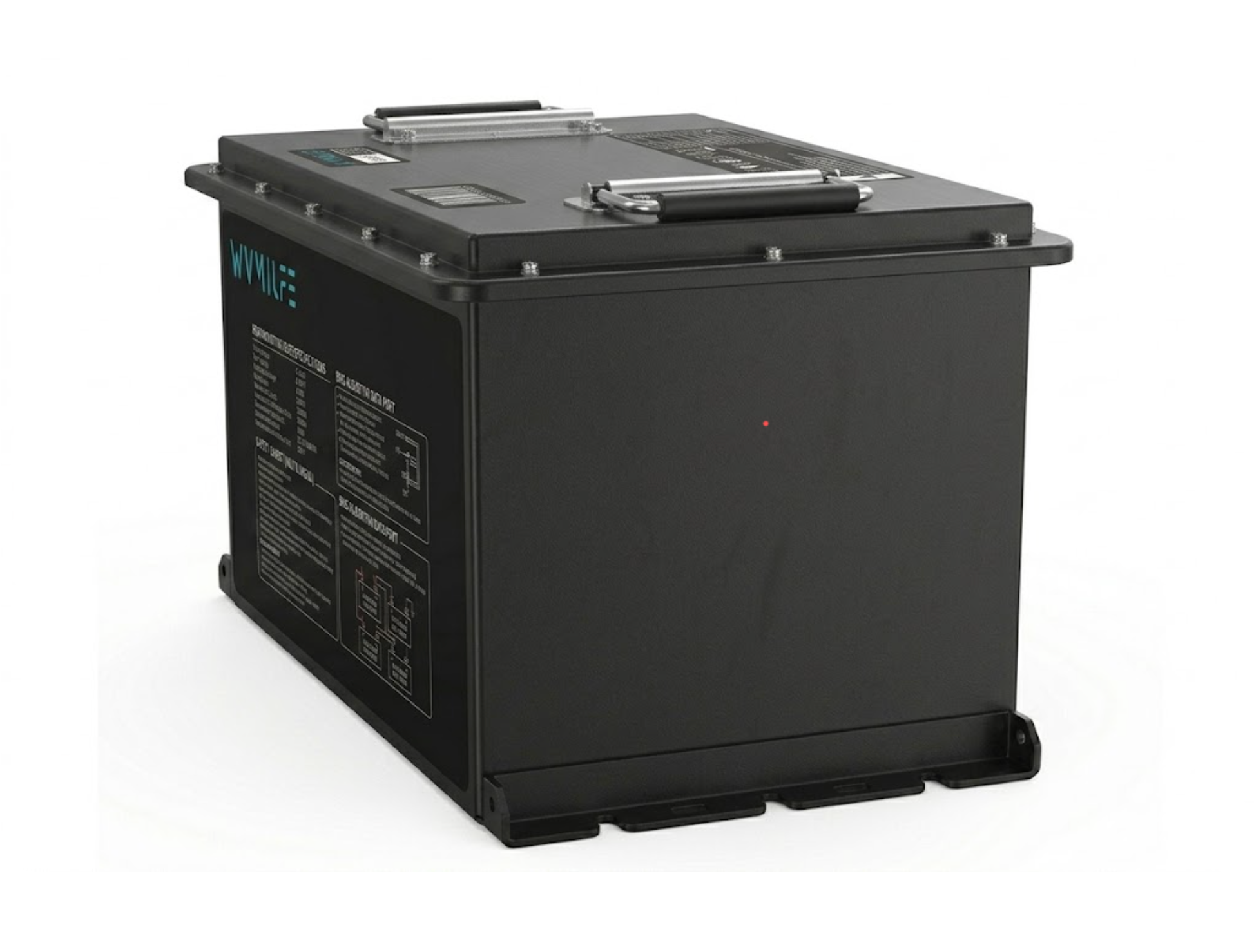

W36105 Fleet-Series | 36V 105Ah LiFePO4 Golf Cart Battery | Drop-in Replacement
The Premier Drop-in Solution for Classic 36V Fleet Upgrades

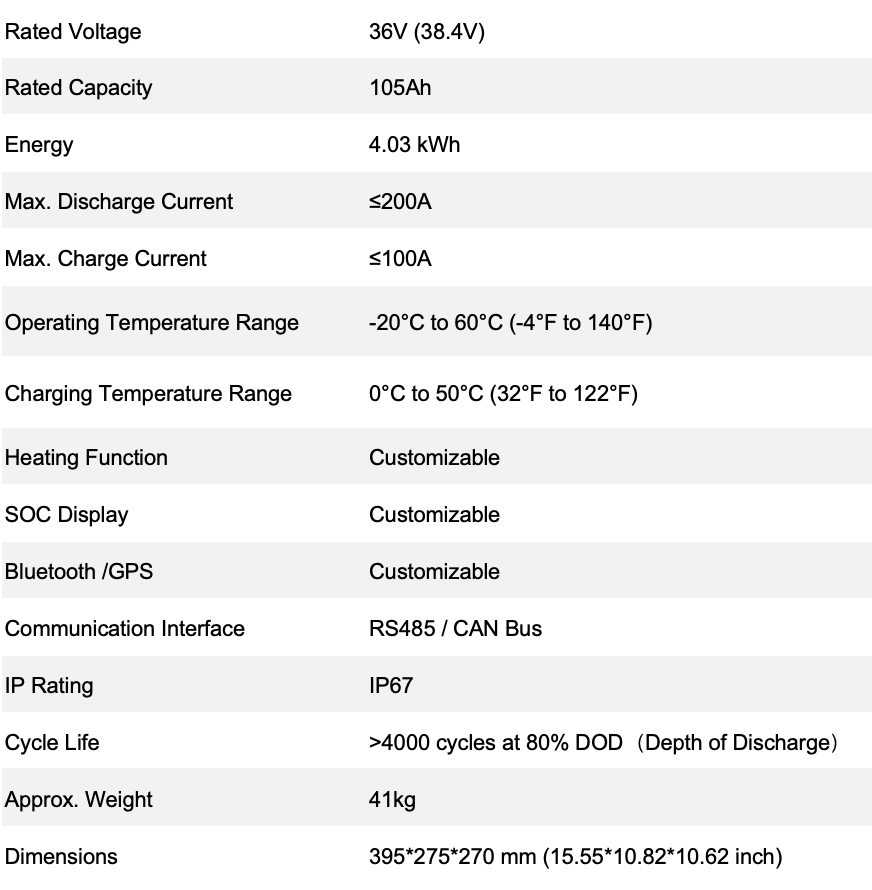

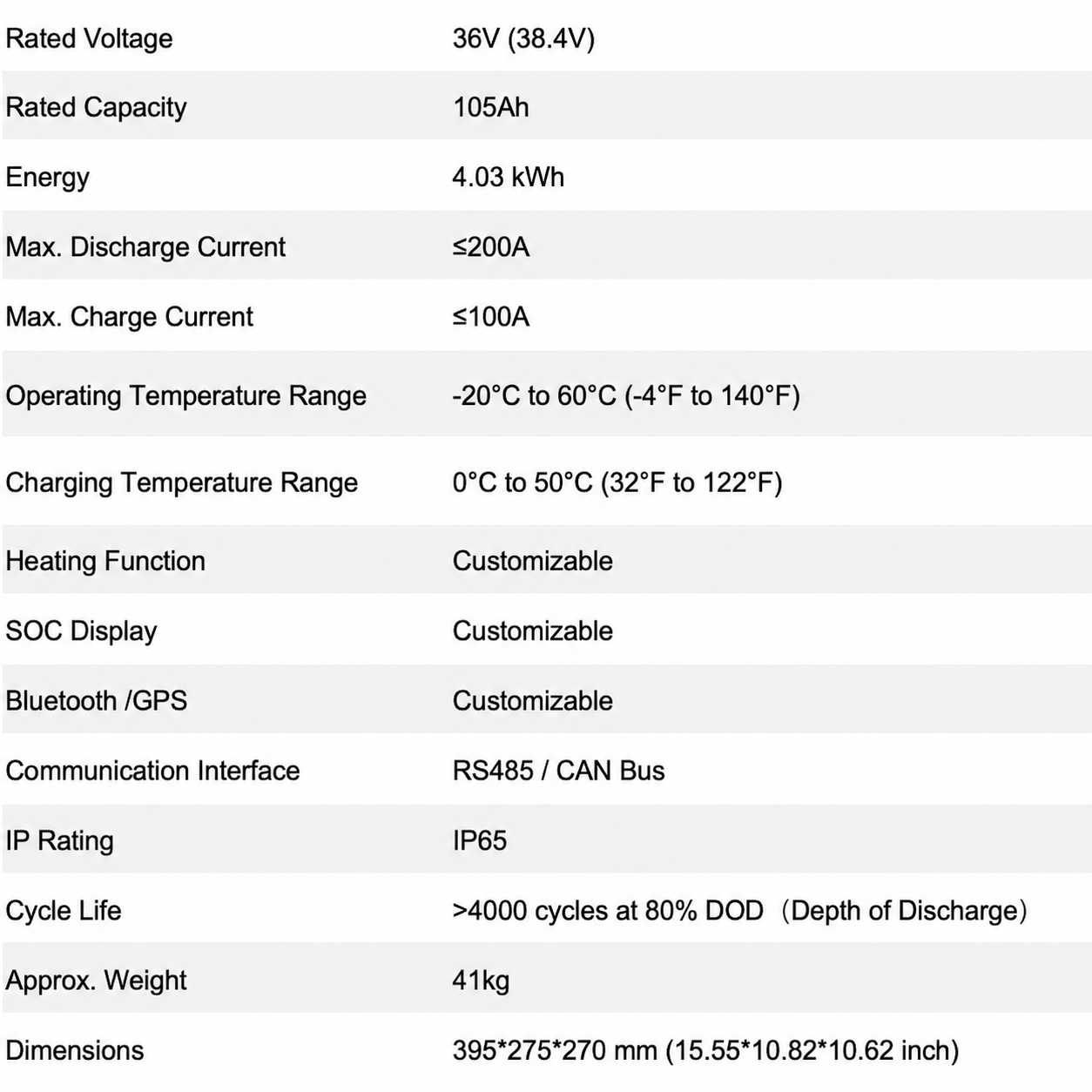

▪️ Cell Architecture: Tier-1 Grade-A Prismatic Cells
▪️ Chemistry: LiFePO4 (Lithium Iron Phosphate)
▪️ Nominal Voltage: 36V (38.4V)
▪️ Rated Capacity: 105Ah (4.03 kWh)
▪️ Max Continuous Output: 105A
▪️ Peak Pulse Current: 350A (12 Seconds) — High-Torque Buffer
▪️ Enclosure Rating: IP65 Rated (All-Weather Sealed)
▪️ Cycle Life: >4,000 Cycles @ 80% DOD

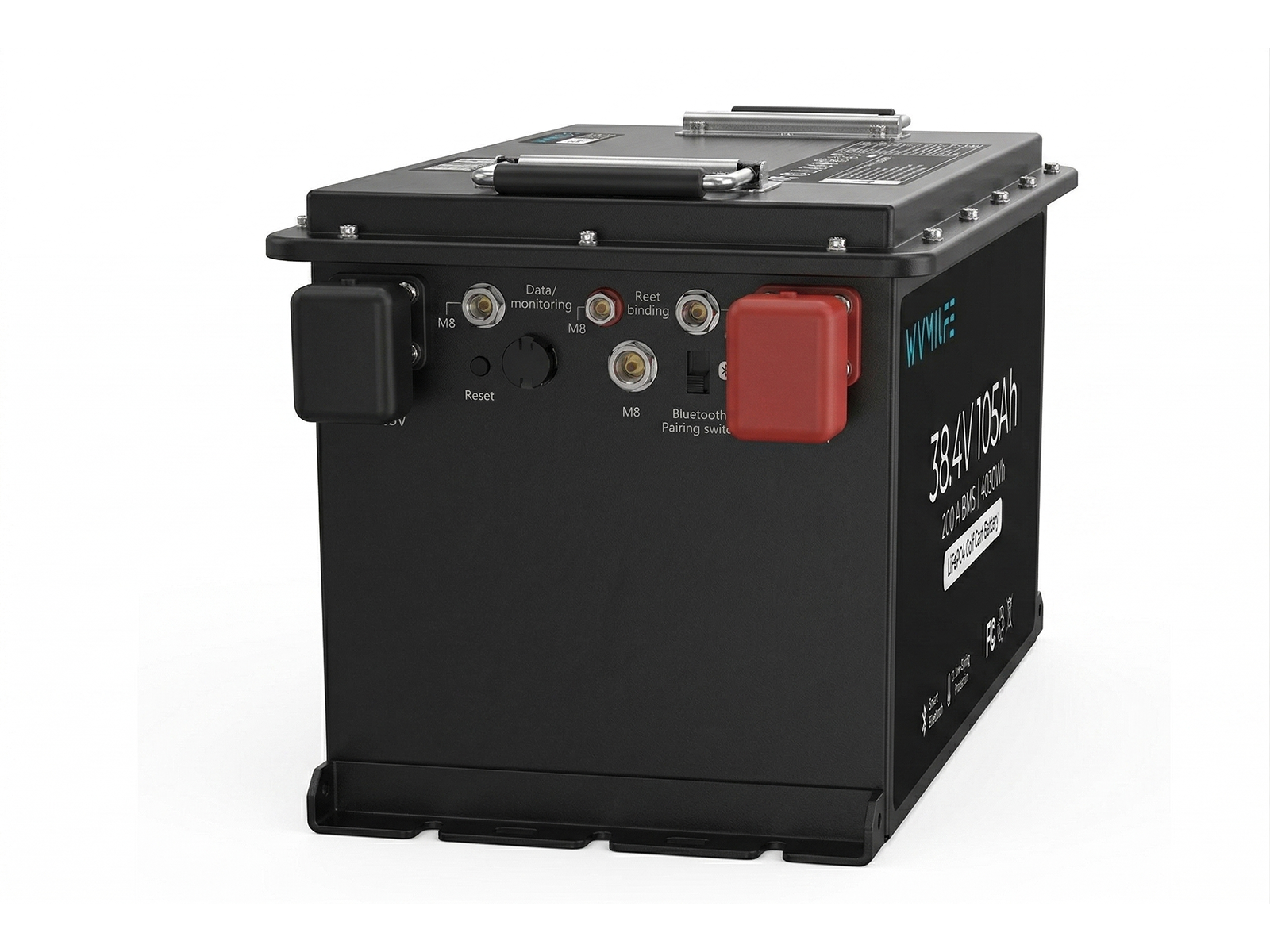

▪️ Intelligent Interface: CAN-bus / RS485 / Bluetooth Smart-App
▪️ Operating Range: -20°C to 60°C (-4°F to 140°F)
▪️ Weight: 41 KG (90.39 lbs)

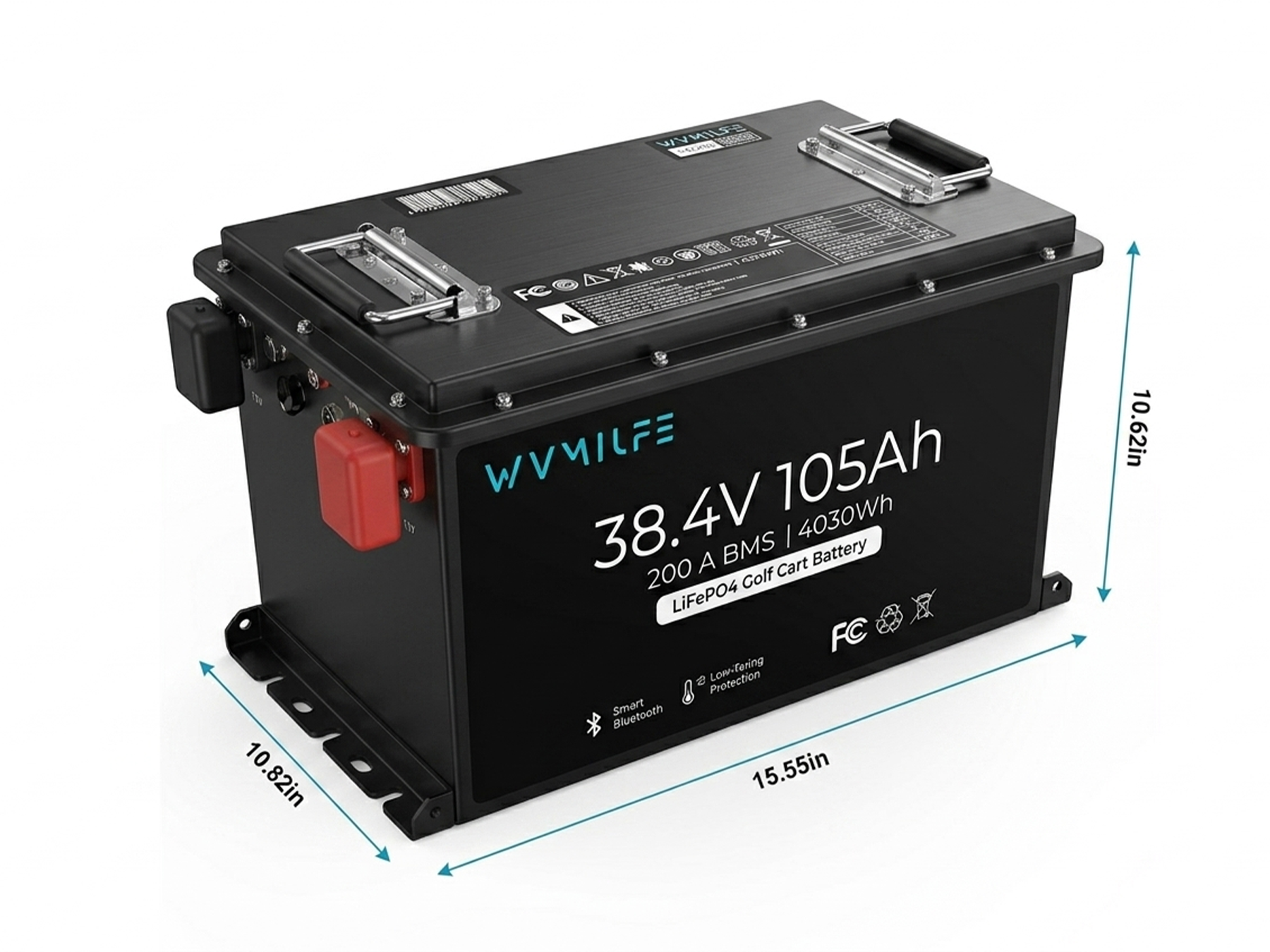

▪️ Dimensions: 395 × 275 × 270 mm (15.55" × 10.82" × 10.62")
System Integrity: Integrated BMS featuring laser-welded internal busbars, low-temp charge protection, and active cell balancing for long-term reliability.
Dedicated 36V LiFePO4 Charger Recommended.
【 Revitalize Your Classic Cart: The Ultimate 36V Lithium Upgrade 】
The W36105 is specifically engineered to bring modern lithium performance to classic 36V golf cart platforms. Featuring a compact 15.55" footprint, this 4.03 kWh LiFePO4 pack is the definitive drop-in replacement for aging 6V lead-acid sets. By shedding over 250 lbs of dead weight, it instantly improves your vehicle’s acceleration, braking, and hill-climbing torque, extending the life of your classic cart for years to come.
【 Feature Blocks 】:

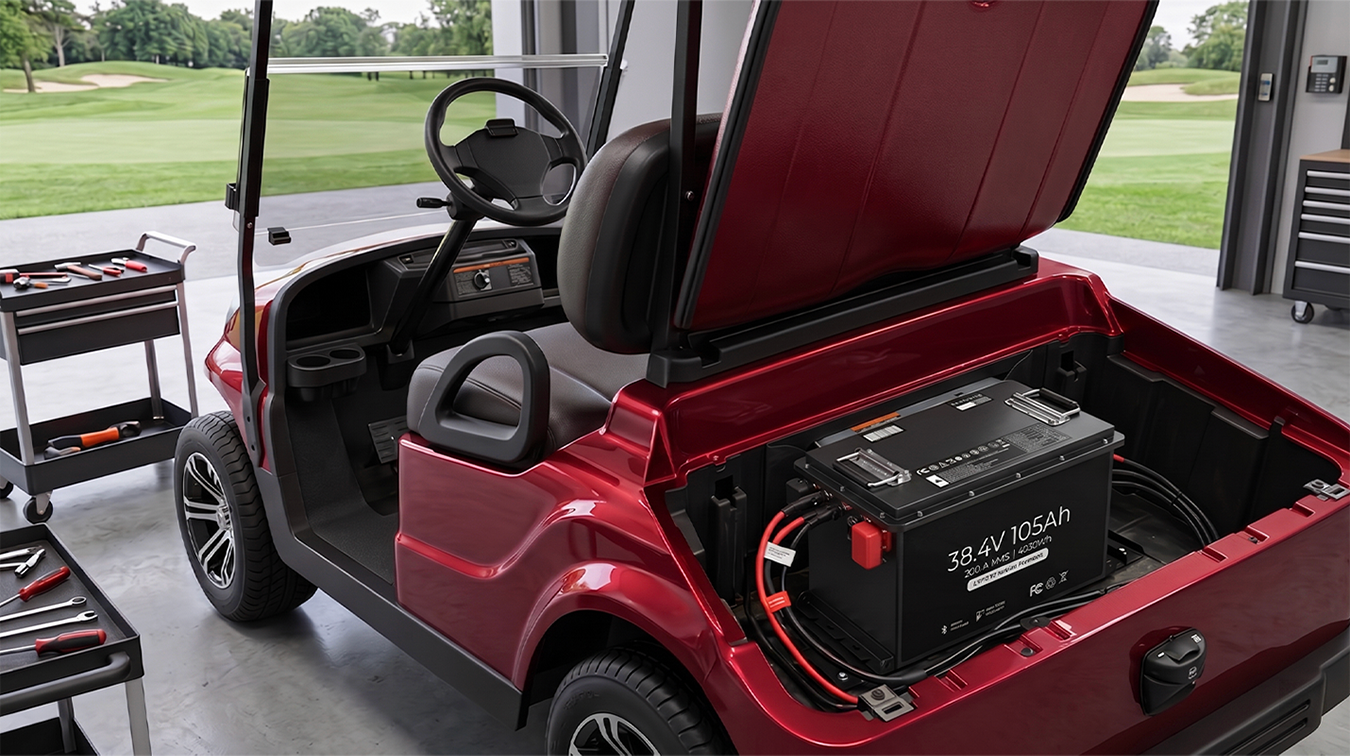

✓ Precision Drop-in for Classic 36V Trays
Designed for a hassle-free retrofit. With its compact dimensions of 15.55" × 10.82" × 10.62", the W36105 fits easily into most standard 36V battery compartments. At just 90 lbs, it replaces six bulky lead-acid batteries, drastically reducing chassis stress and restoring the nimble handling of your EZ-GO, Club Car, or Yamaha classic model.
✓ High-Torque Performance (350A Peak Buffer)
Breathe new life into your 36V motor. Old-school motors often demand high current spikes during startup and inclines. Our BMS is calibrated to sustain a 350A peak pulse for a full 12 seconds, providing the essential "torque buffer" needed for fully-loaded 2-to-4 passenger carts to navigate ridges and steep paths without the annoyance of BMS tripping.
✓ Industrial-Grade Prismatic Engineering
Don't settle for consumer-grade power. The W36105 utilizes Tier-1 Grade-A Prismatic Cells, offering superior thermal stability and a >4,000 cycle life. Featuring laser-welded internal busbars, this high-durability architecture is designed to withstand the vibrations of off-road turf and gravel, outlasting traditional lead-acid batteries by up to 10 times.

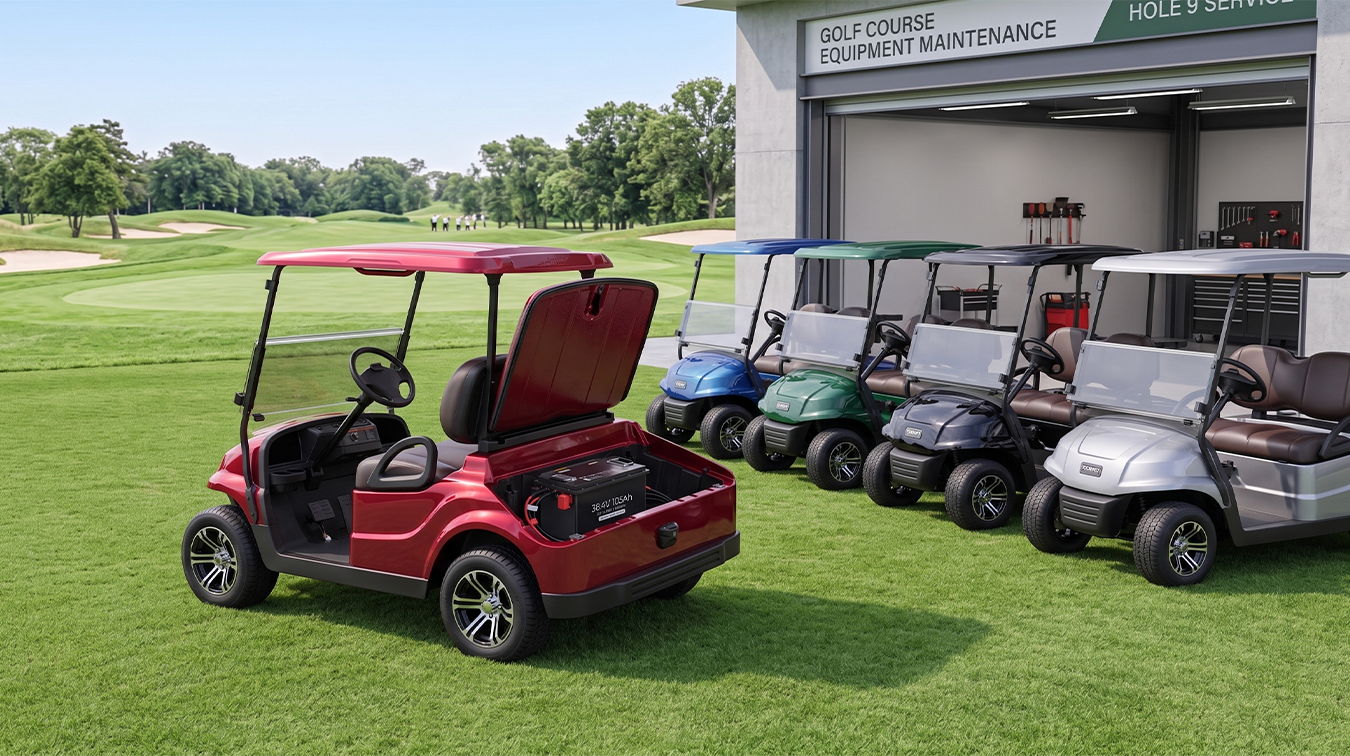

✓ All-Weather Protection & Smart Diagnostics
Stop dealing with acid leaks and terminal corrosion forever. The IP65-rated housing ensures your power source is sealed against rain and course irrigation. With integrated Bluetooth Smart-App monitoring and CAN-bus/RS485 communication, fleet managers and private owners can track SoC and cell health in real-time, ensuring the vehicle is always ready for the next round.
