W72105 Series | 72V 105Ah Lithium Golf Cart Battery for High-Performance LSVs
Engineered for Fleet & Performance LSV Applications

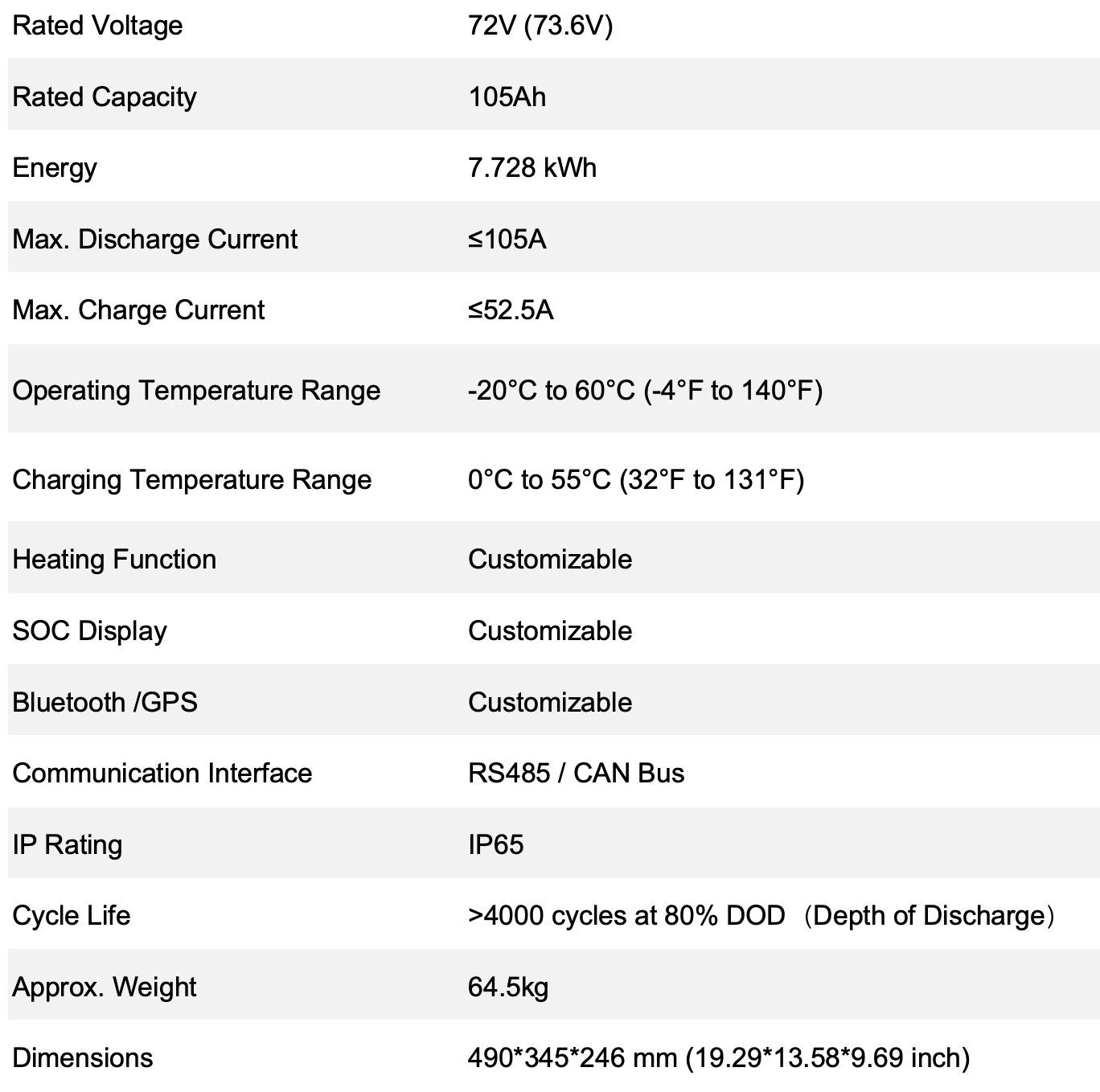

▪️ Cell Architecture: Tier-1 Grade-A Prismatic Cells
▪️ Chemistry: LiFePO4 (Lithium Iron Phosphate)
▪️ Nominal Voltage: 72V (73.6V)
▪️ Capacity: 105Ah (7.73 kWh)
▪️ Continuous Output: 105A
▪️ Peak Pulse Current: 350A (12 Seconds) — Ideal for Steep Inclines
▪️ Enclosure Rating: IP65 Water & Dust Resistant
▪️ Durability: >4,000 Cycles @ 80% DOD

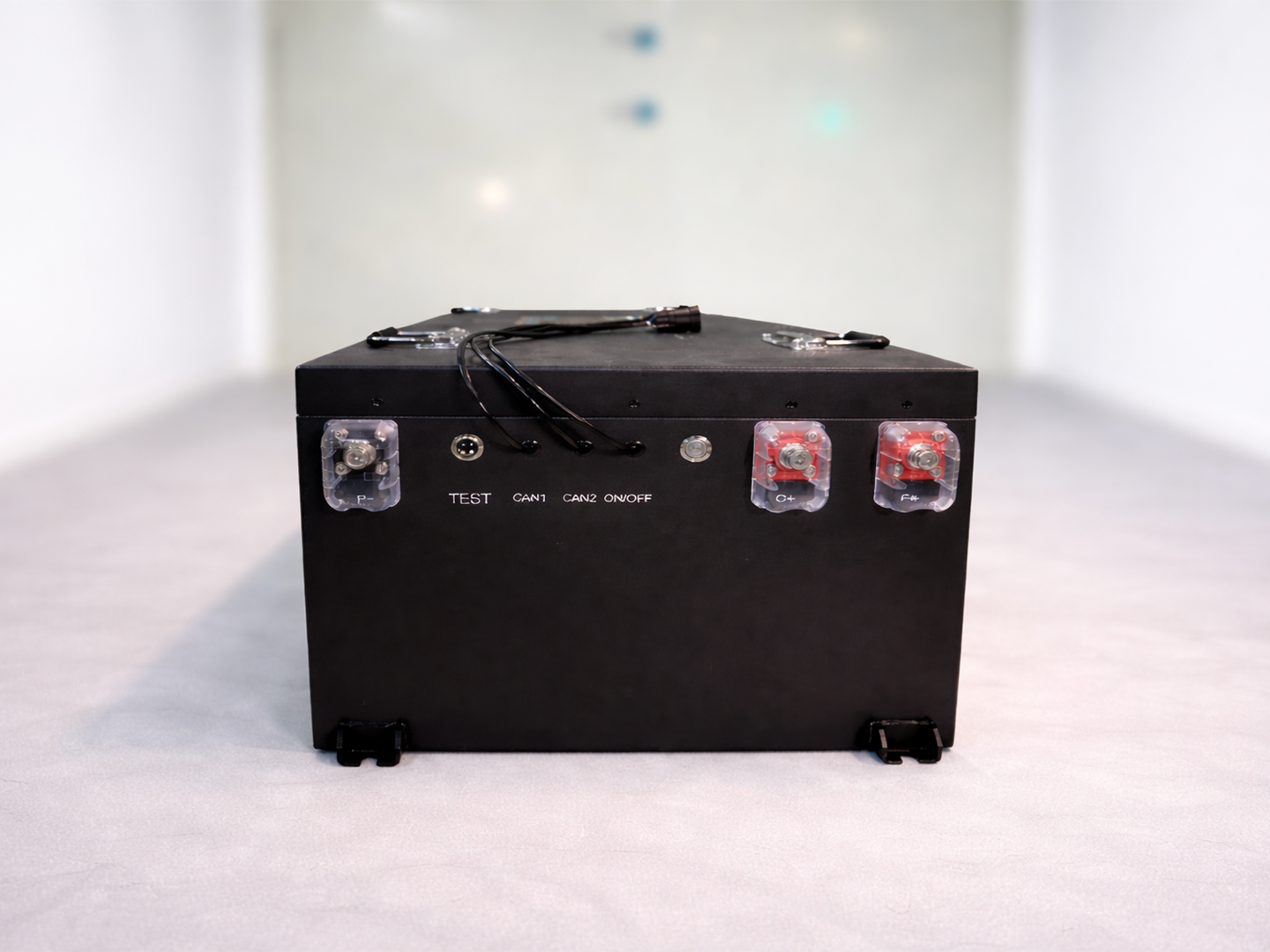

▪️ Intelligent Interface: CAN-bus / RS485 / Bluetooth Smart-App
▪️ Operating Range: -20°C to 60°C (-4°F to 140°F)
▪️ Weight: 64.5 KG (142.2 lbs)

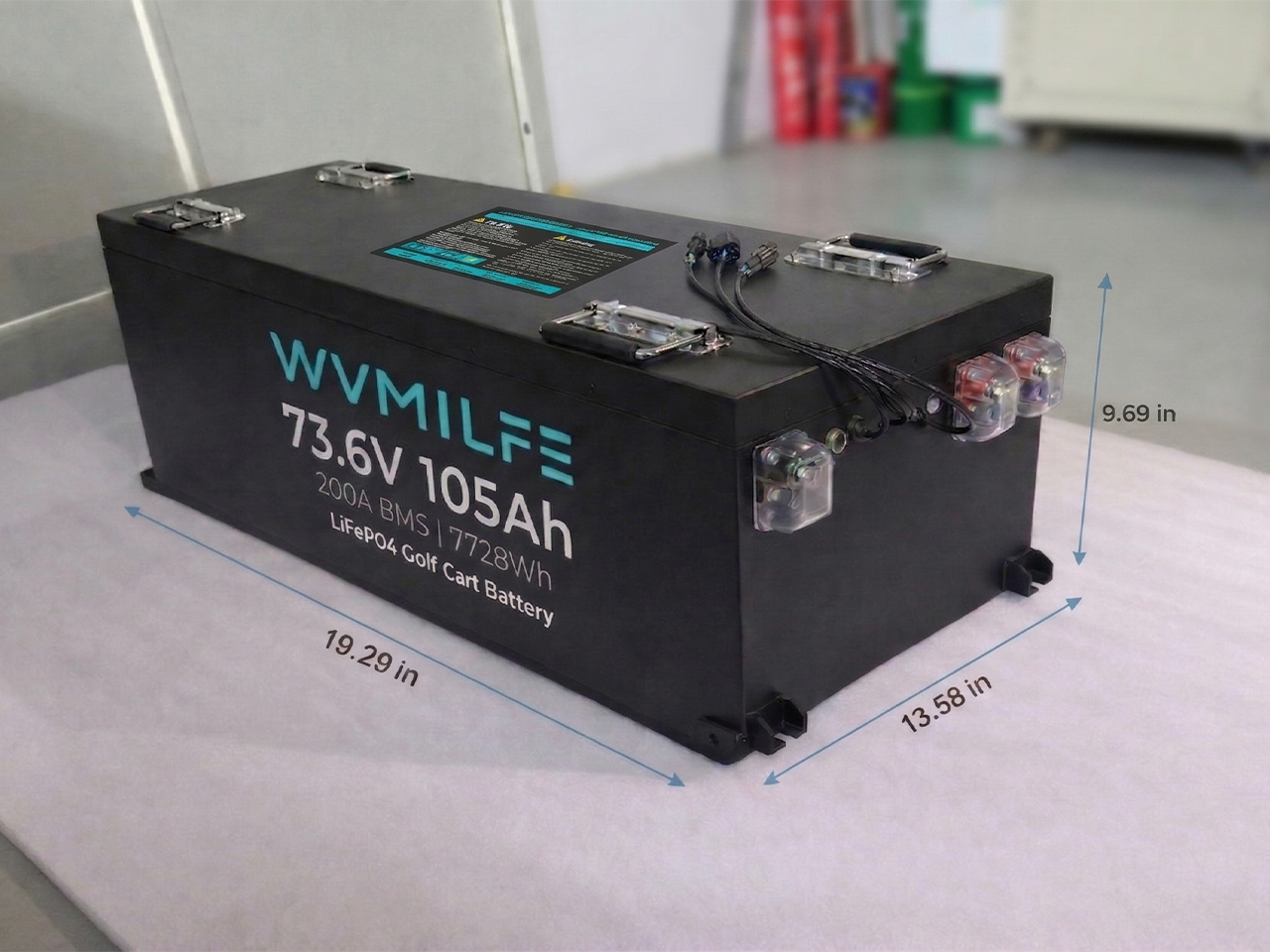

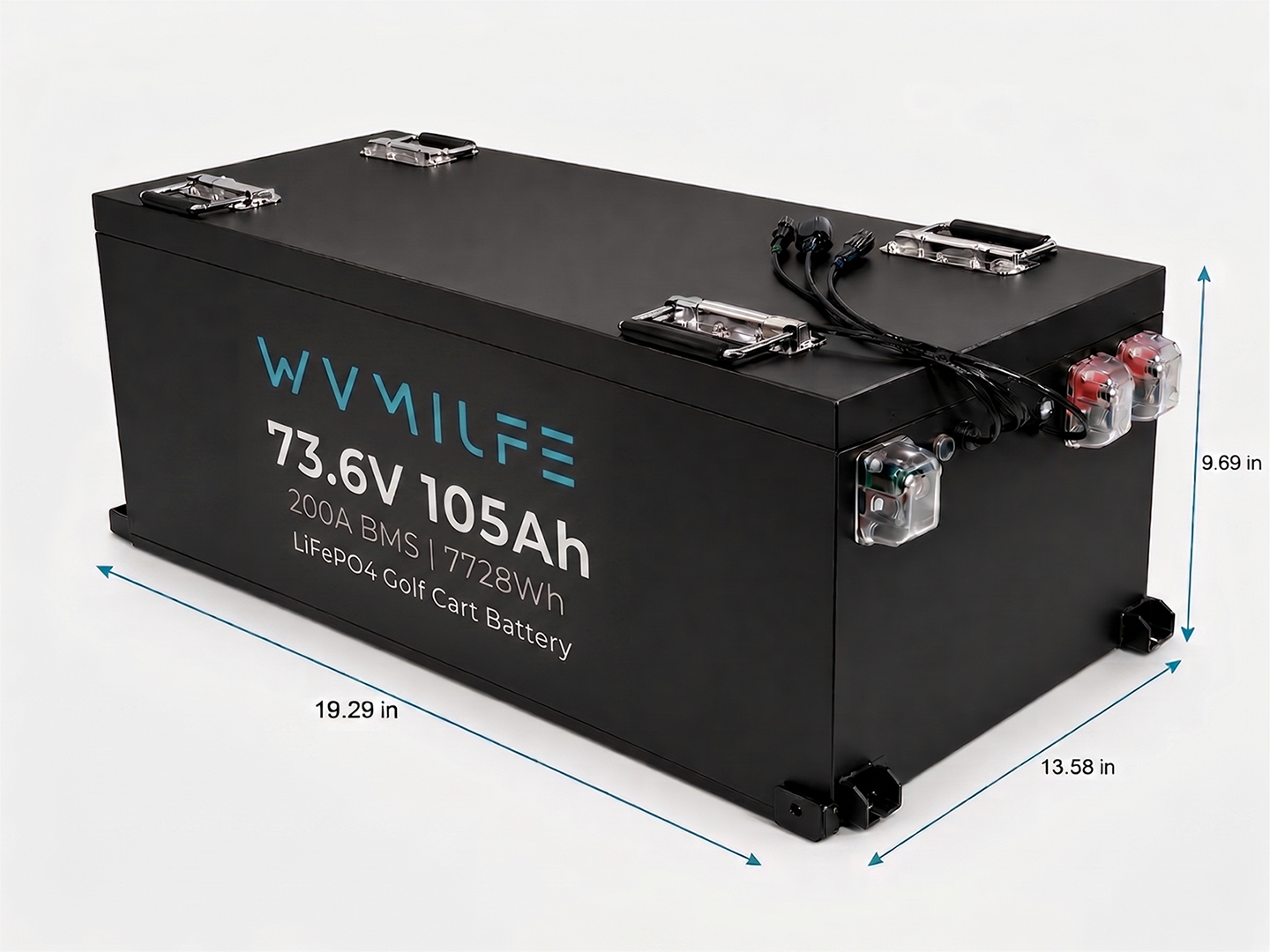

▪️ Footprint: 490 x 345 x 246 mm (19.29" x 13.58" x 9.69")
System Integrity: Integrated BMS with low-temp charge protection and active cell balancing.

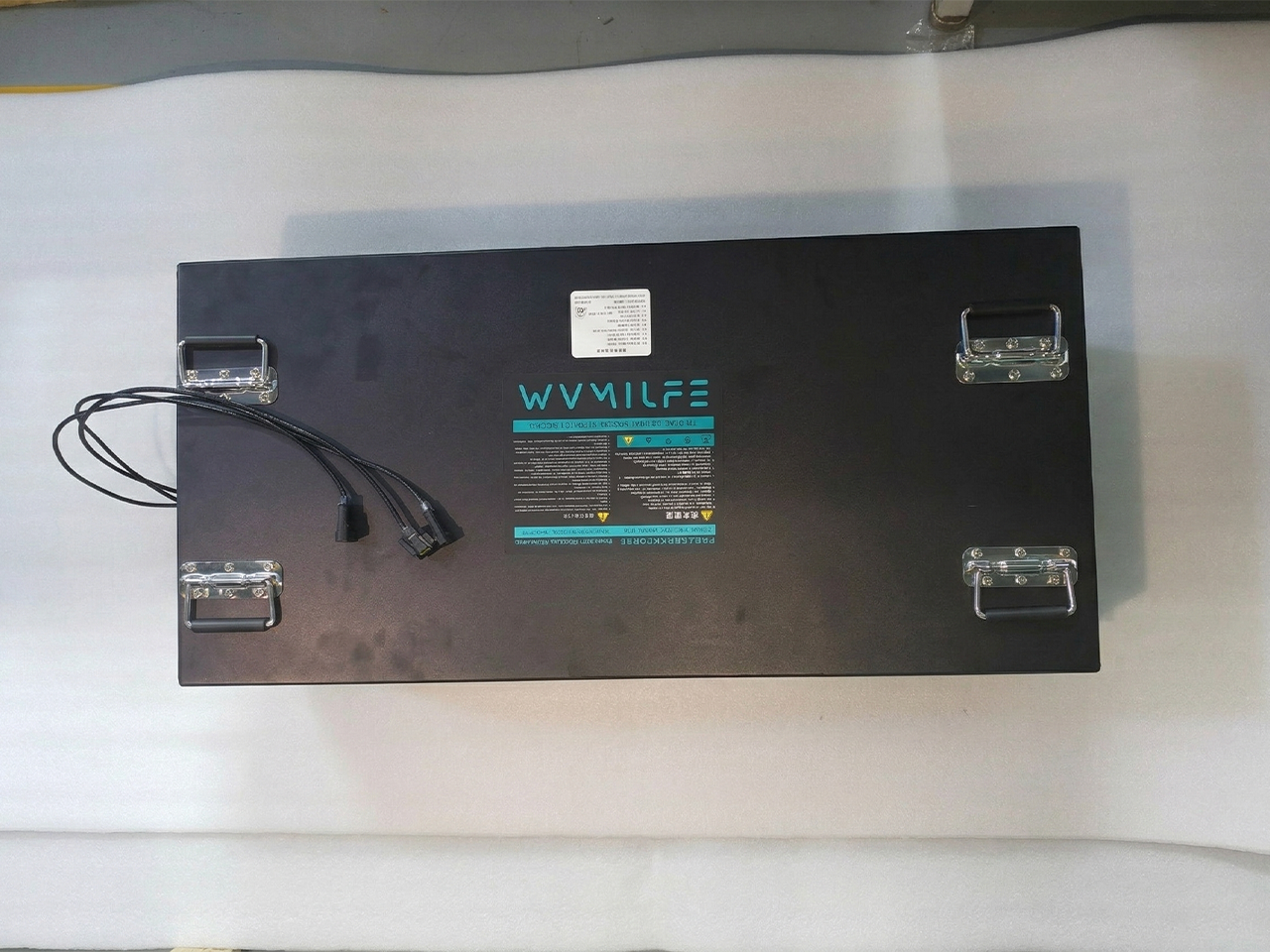

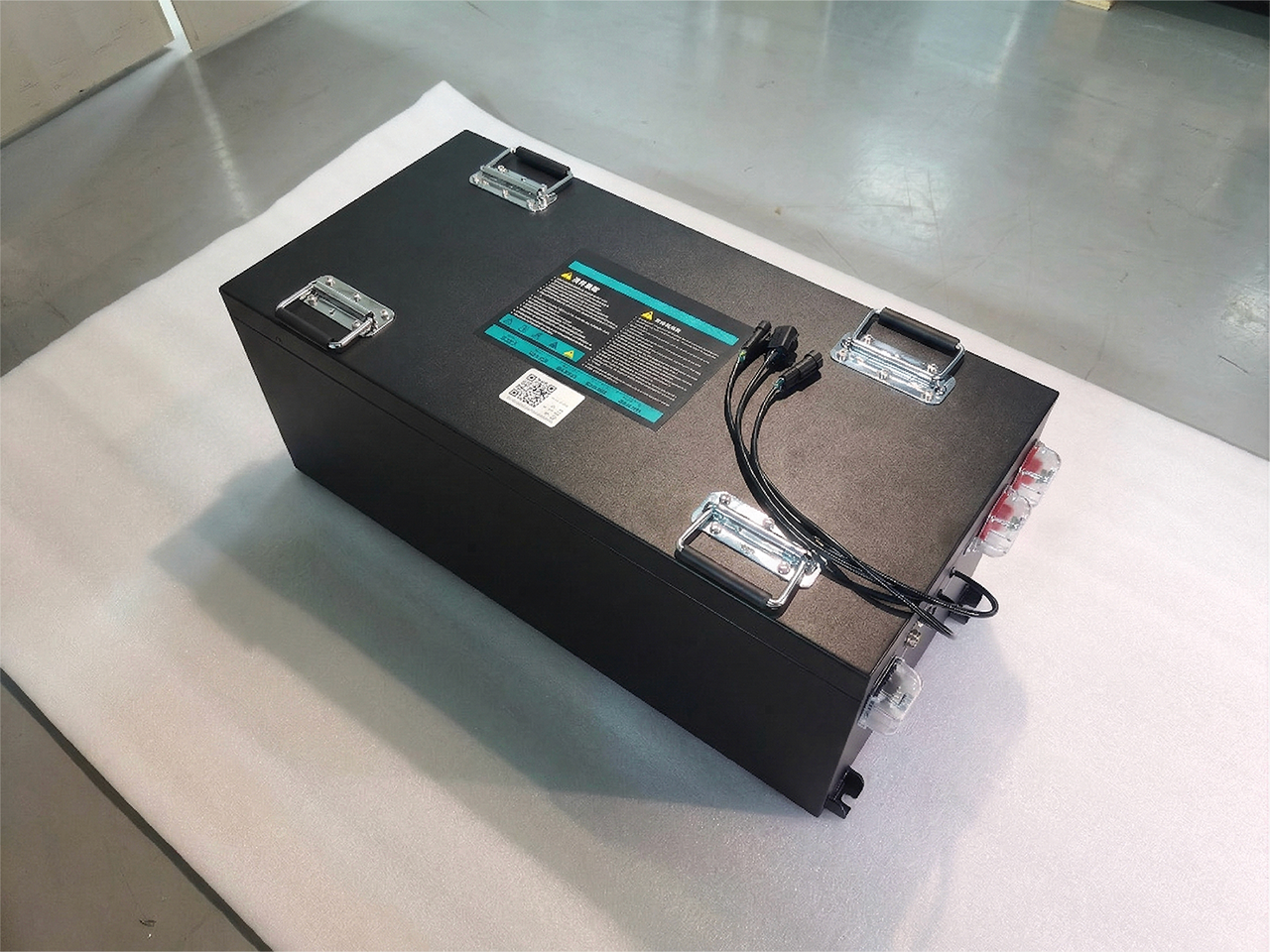

Drop-in ready design for 72V chassis configurations. Includes integrated lift-handles for simplified installation.
【 Power & Performance 】
High-Output Performance for 72V LSVs and Lifted Carts
Designed for the most demanding 72 Volt lithium conversion projects, the W72105 pack is engineered for high-speed Low-Speed Vehicles (LSVs), lifted 6-seater carts, and rugged terrain navigation. When standard lead-acid sets fail to deliver, this 72V LiFePO4 system provides the ultimate torque and efficiency for high-performance golf cart upgrades without overheating.
【 Feature Blocks 】
✓ Industrial-Grade Torque (350A Peak Discharge)
Built for 6-to-8 passenger shuttles and heavy-duty utility vehicles. This high-voltage 72V lithium system features a proprietary BMS capable of sustaining a 350A peak discharge for up to 10 seconds. It delivers the raw, uninterrupted torque required for fully-loaded hill climbing and aggressive acceleration, effectively preventing voltage drops or controller shutdowns in upgraded motor systems.
✓ Maximum Fleet Range (7.73 kWh Energy Content)
Eliminate mid-day charging anxiety for your commercial golf cart fleet. With a robust 105Ah capacity yielding 7.73 kWh of total energy, this single lithium powerpack dramatically extends the operational range of your transport vehicles. It ensures resort fleets, campus security, and commercial hospitality carts can operate all day on a single charge.
✓ All-Weather & Off-Road Reliability (IP65 Rated)
Commercial LSVs must operate in unpredictable environments. Encased in an IP65-rated protective housing, this 72V lithium battery is sealed against dust, debris, and moisture. Whether navigating rainy resorts or muddy utility trails, your LiFePO4 power source remains secure and operational in extreme temperatures from -4°F to 140°F.
✓ Smart Controller Integration & Zero Maintenance

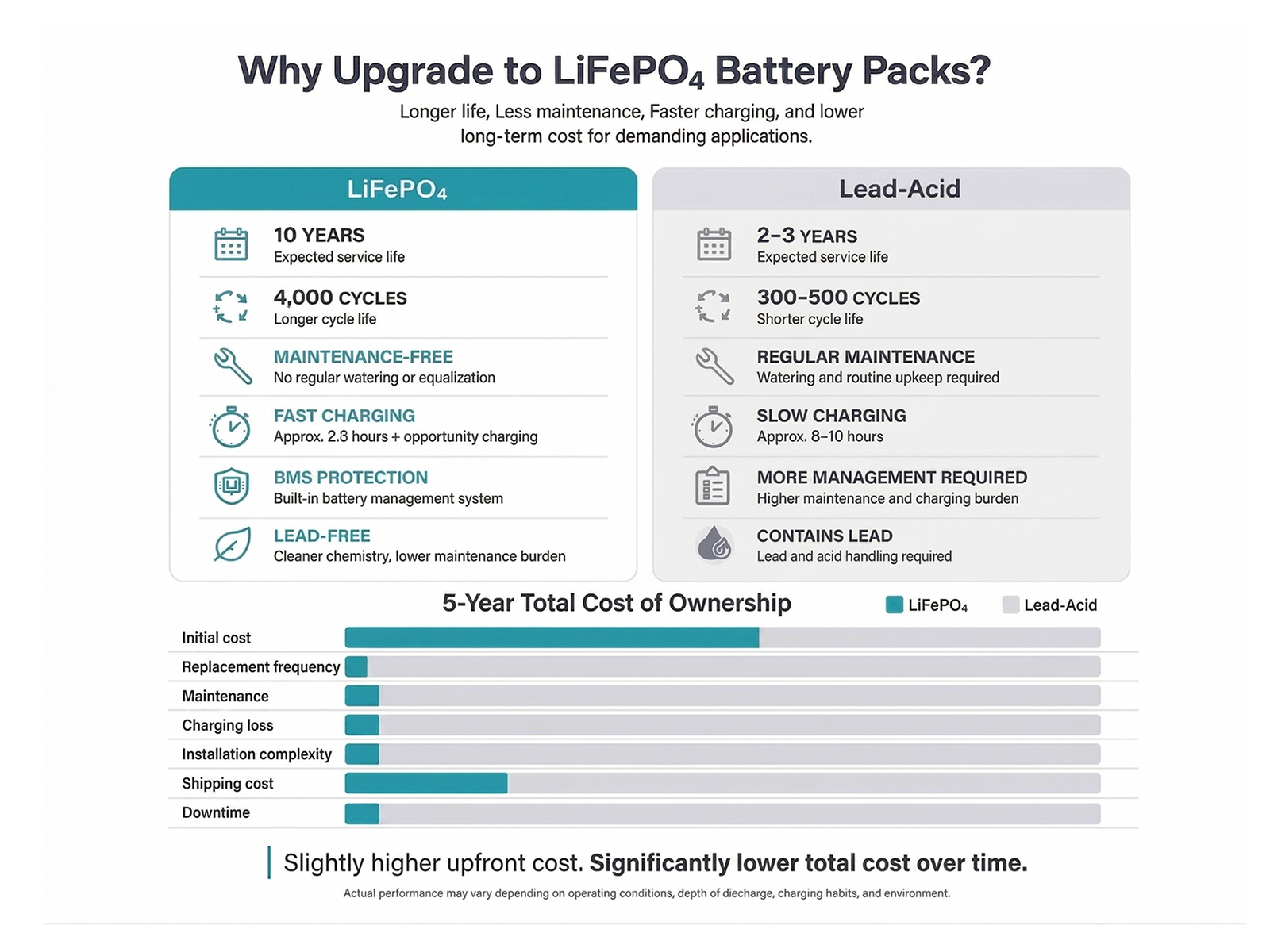

Reduce your Total Cost of Ownership (TCO) by ditching labor-intensive lead-acid maintenance. Our CAN-bus / RS485 communication protocol ensures this pack integrates flawlessly with leading LSV motor controllers (Navitas, Alltrax, Curtis) for real-time telemetry. Featuring a >4000 cycle life, it is the premier drop-in lithium replacement for long-term fleet reliability.
Great compatibility with Club Car Onward, EZ-GO Liberty, and Yamaha Drive2 high-speed configurations.
