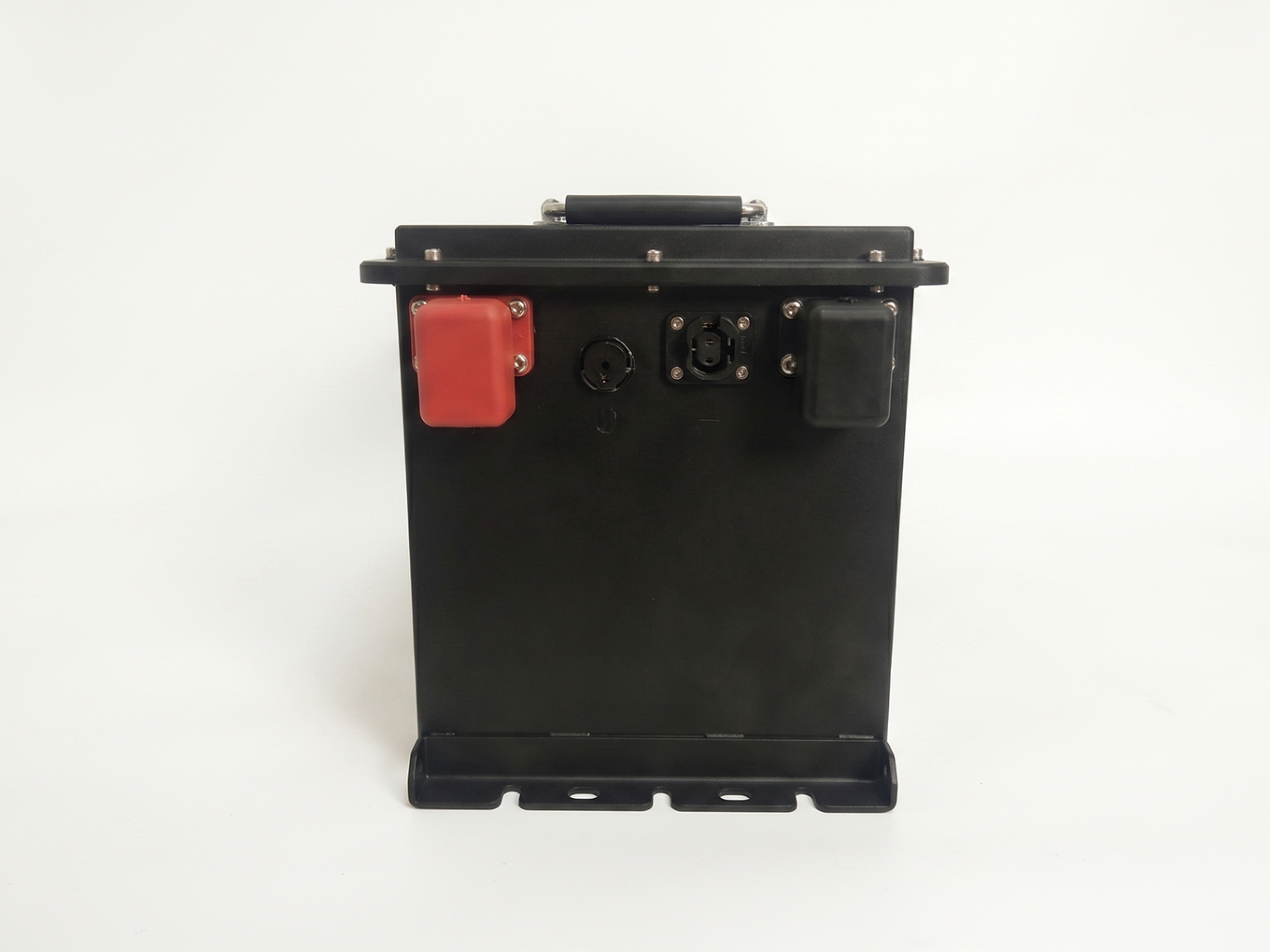

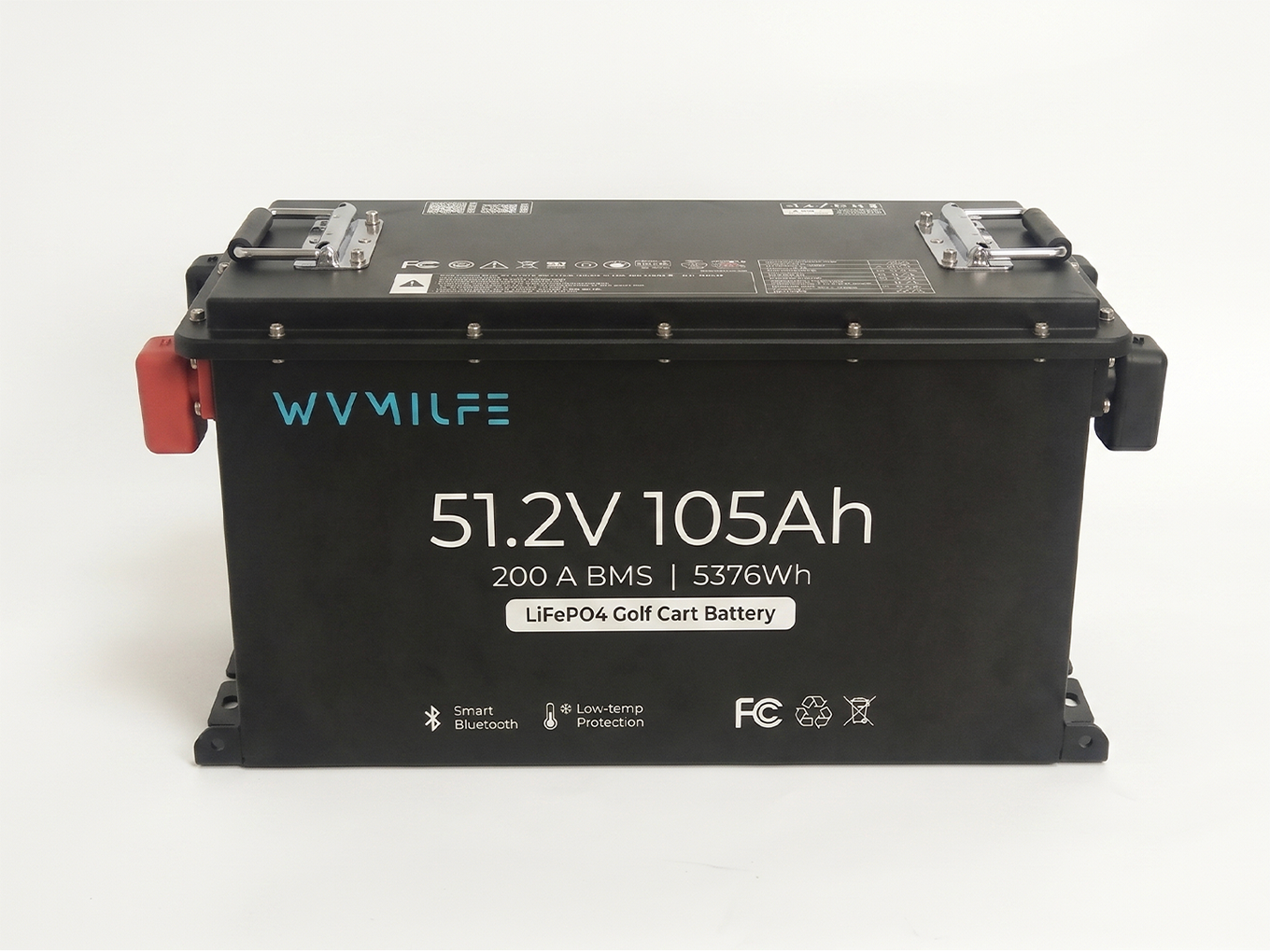

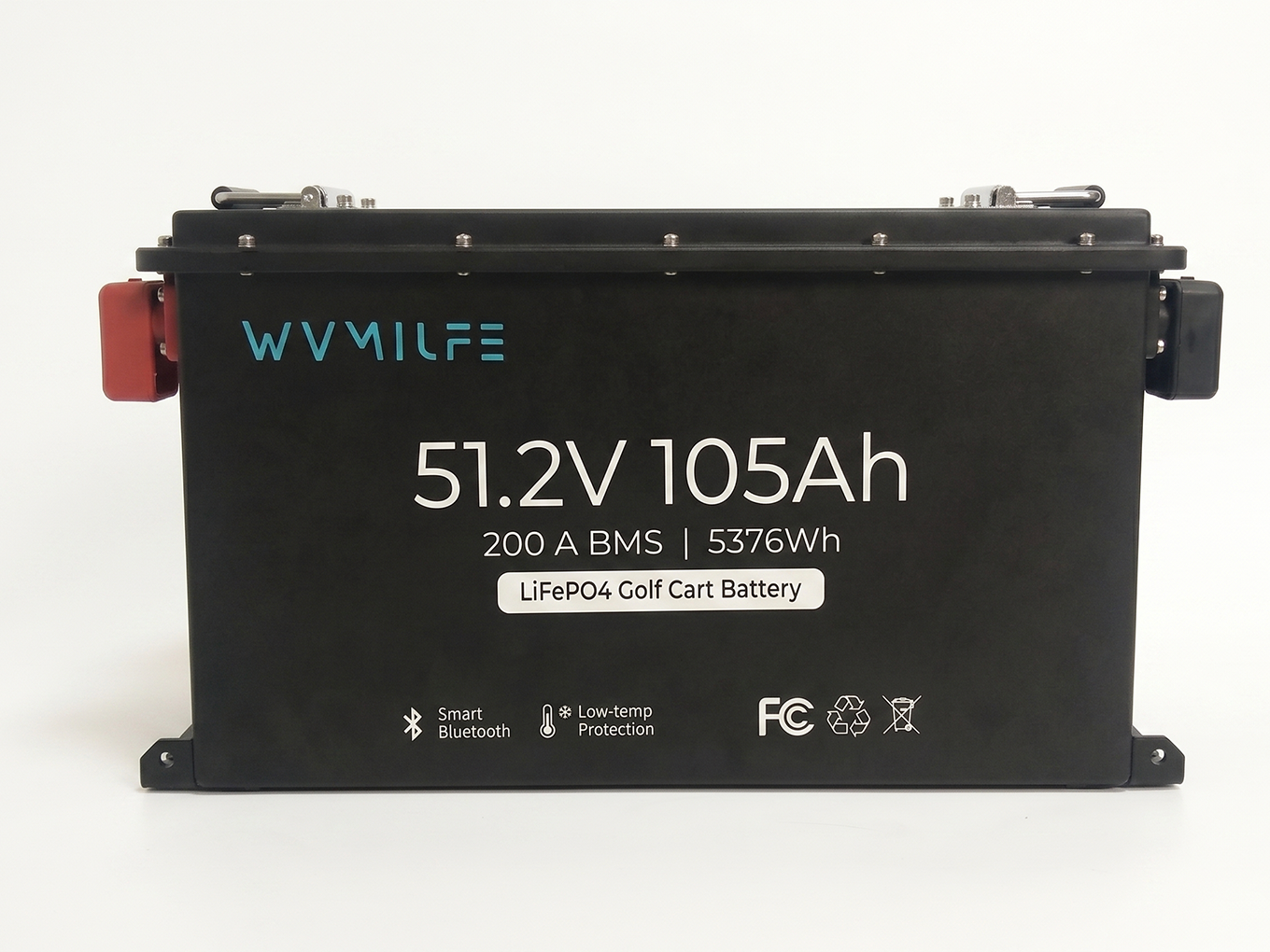

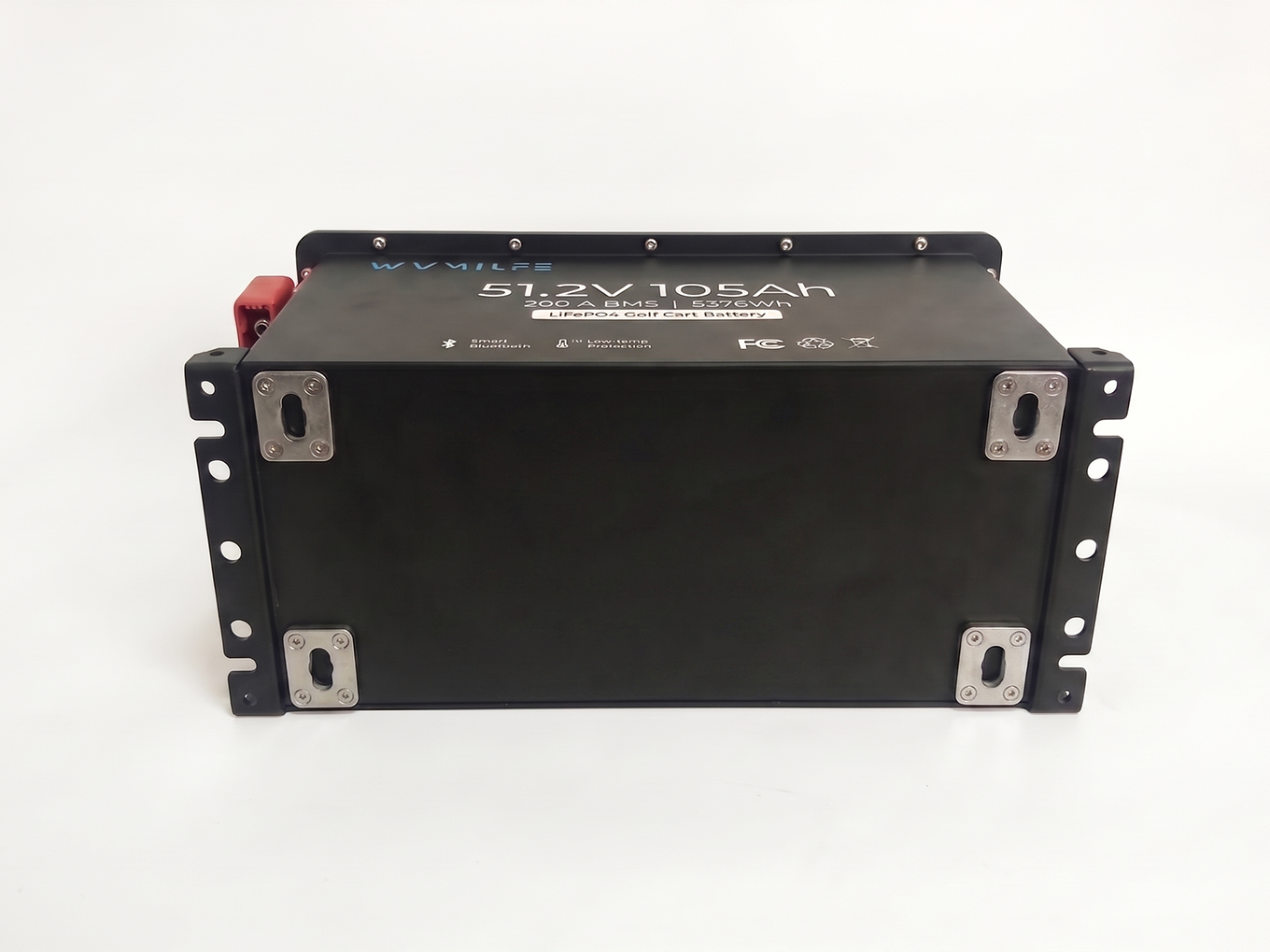

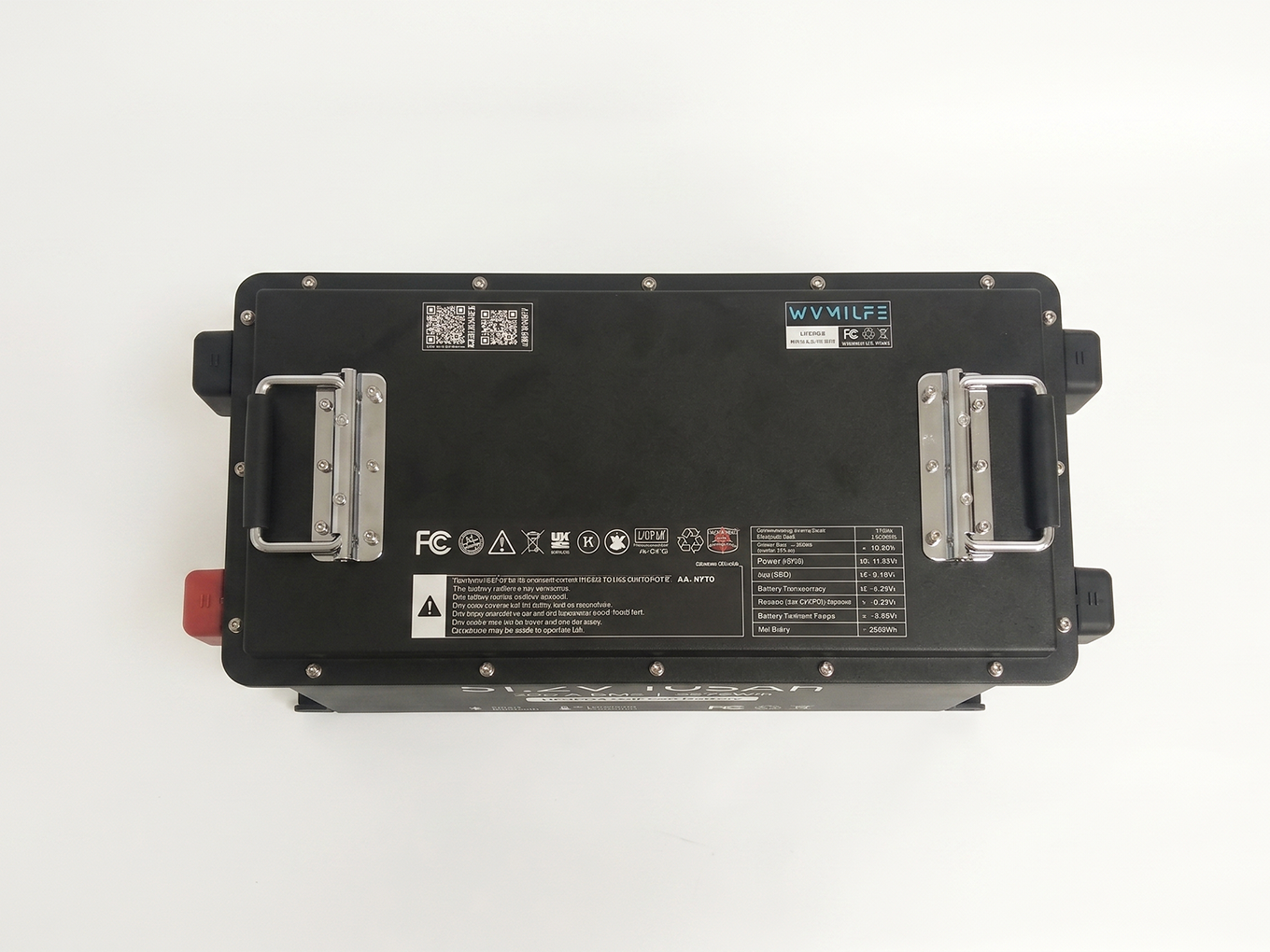

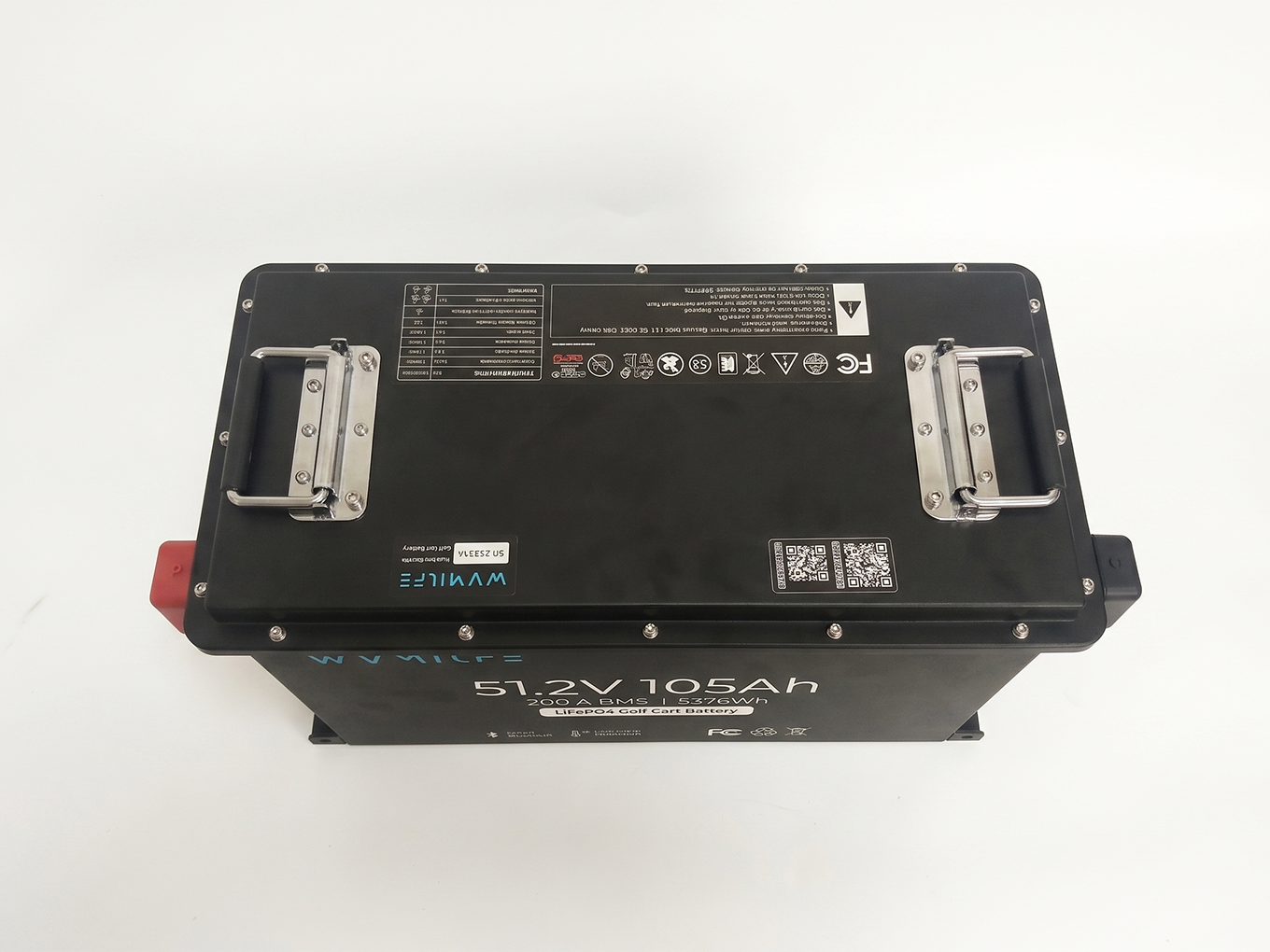

W48105 Mower-Series | 48V 105Ah LiFePO4 Mower Battery | Drop-in Replacement
The Industrial Standard for Electric Zero-Turn & Garden Tractors

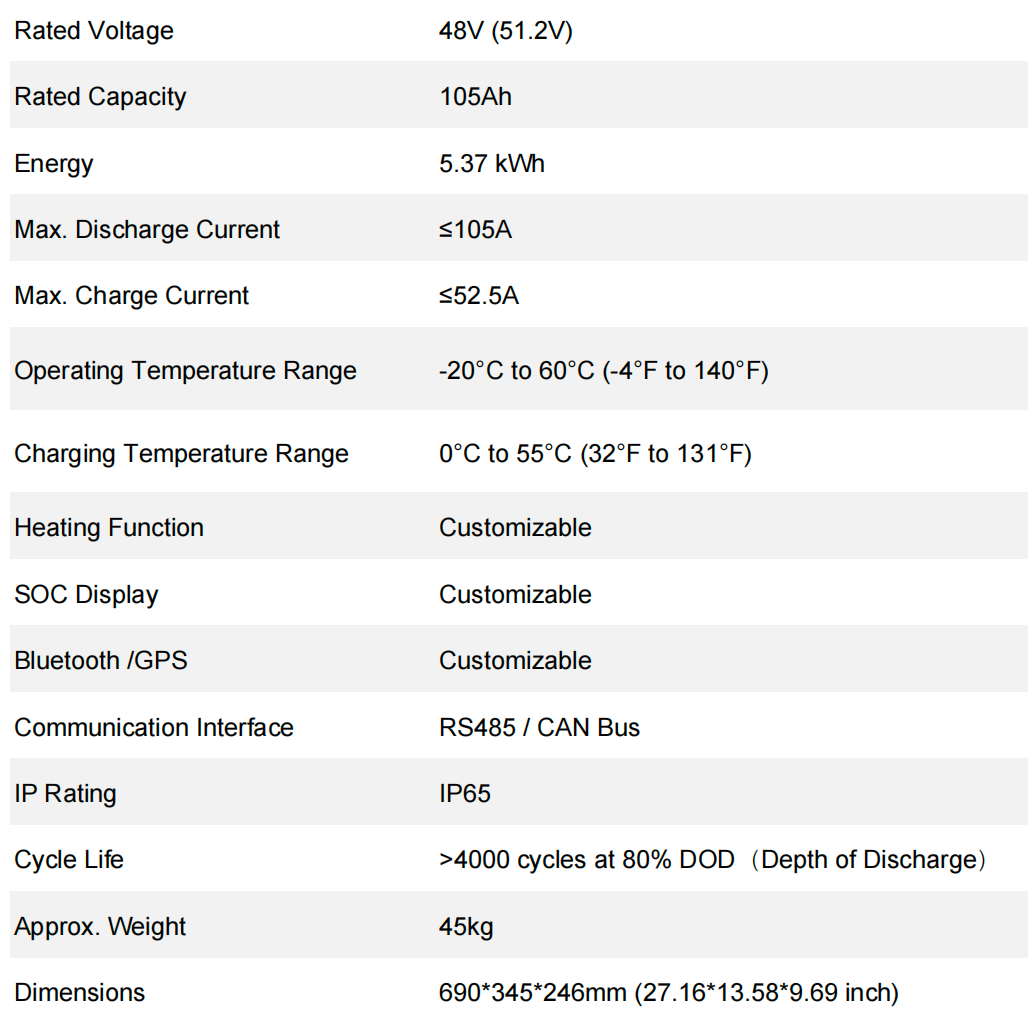

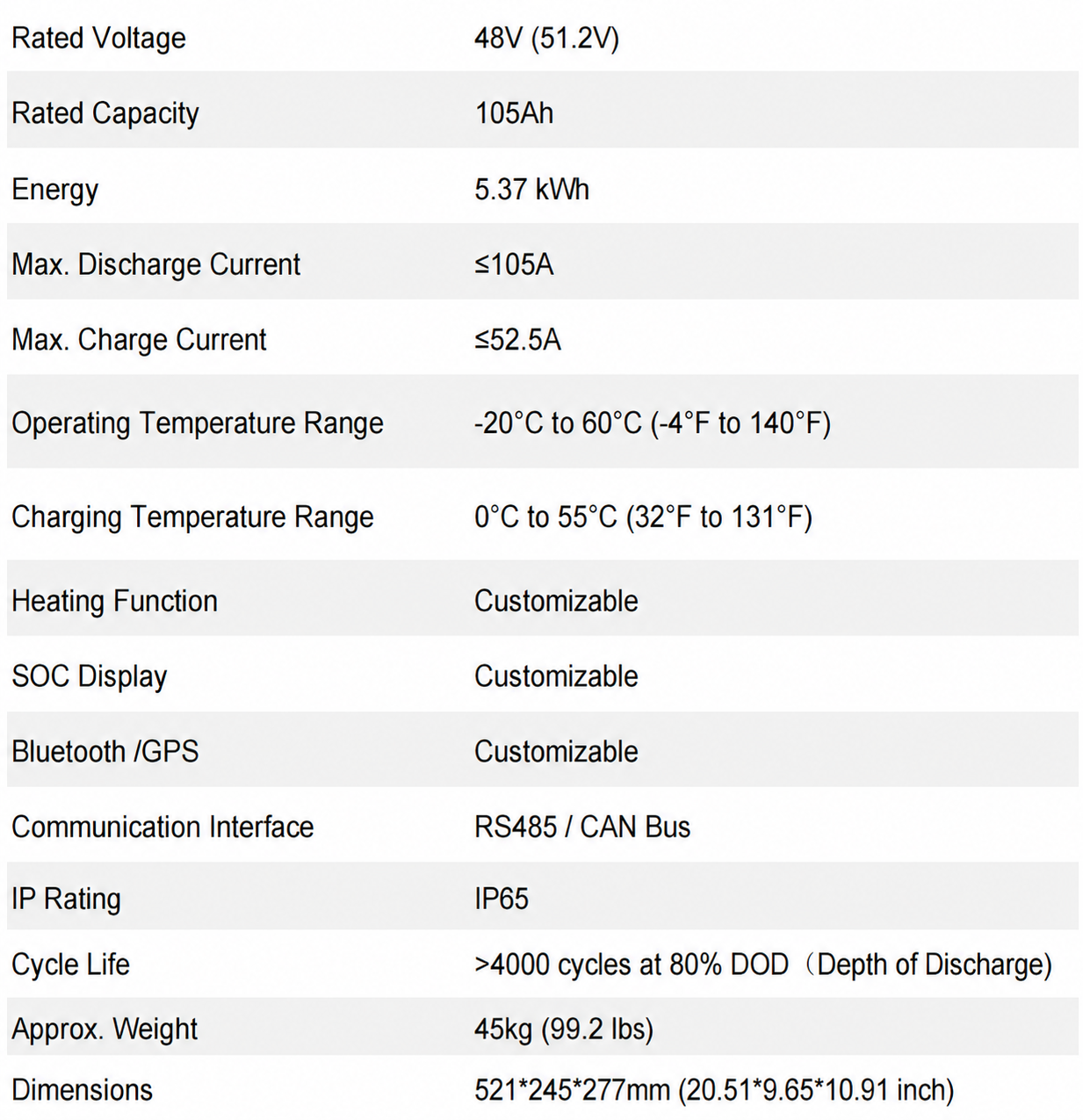

▪️ Cell Architecture: Tier-1 Grade-A Prismatic Cells
▪️ Chemistry: LiFePO4 (Lithium Iron Phosphate)
▪️ Nominal Voltage: 48V (51.2V)
▪️ Rated Capacity: 105Ah (5.38 kWh)
▪️ Max Continuous Output: 105A (Stable 1C Rate)
▪️ Peak Pulse Current: 350A (12 Seconds) — High-Torque Blade Start
▪️ Enclosure Rating: IP65 Rated (Dust & Wash-down Proof)
▪️ Cycle Life: >4,000 Cycles @ 80% DOD
▪️ Intelligent Interface: CAN-bus / RS485 / Bluetooth Smart-App
▪️ Operating Range: -20°C to 60°C (-4°F to 140°F)
▪️ Weight: 45 KG (99.21 lbs)

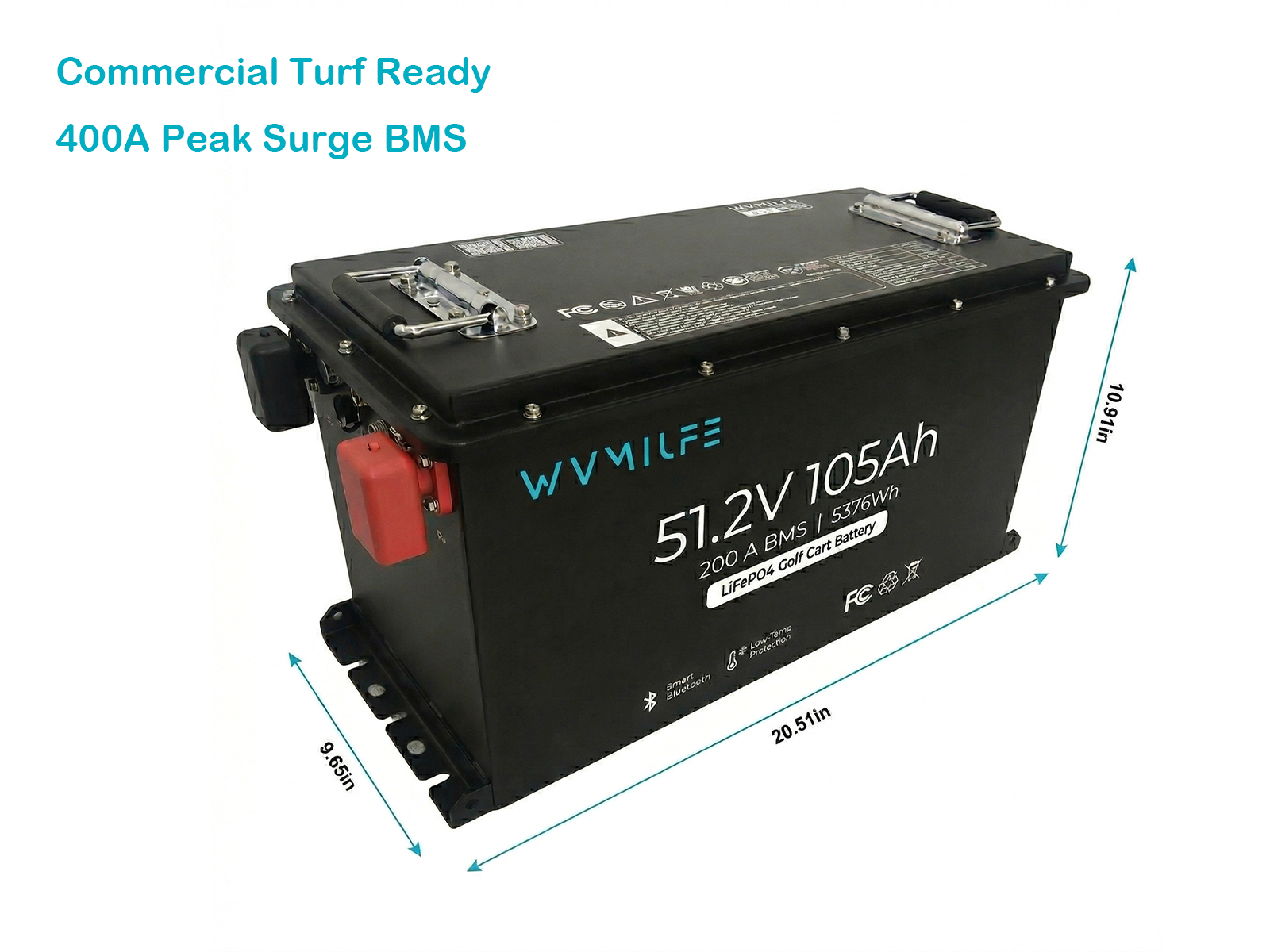

▪️ Dimensions: 521 × 245 × 277 mm (20.51" × 9.65" × 10.91")
System Integrity: Reinforced BMS with laser-welded busbars for extreme vibration resistance and high-load thermal stability.
【 Engineered for Heavy-Duty Electric Mowing Performance 】

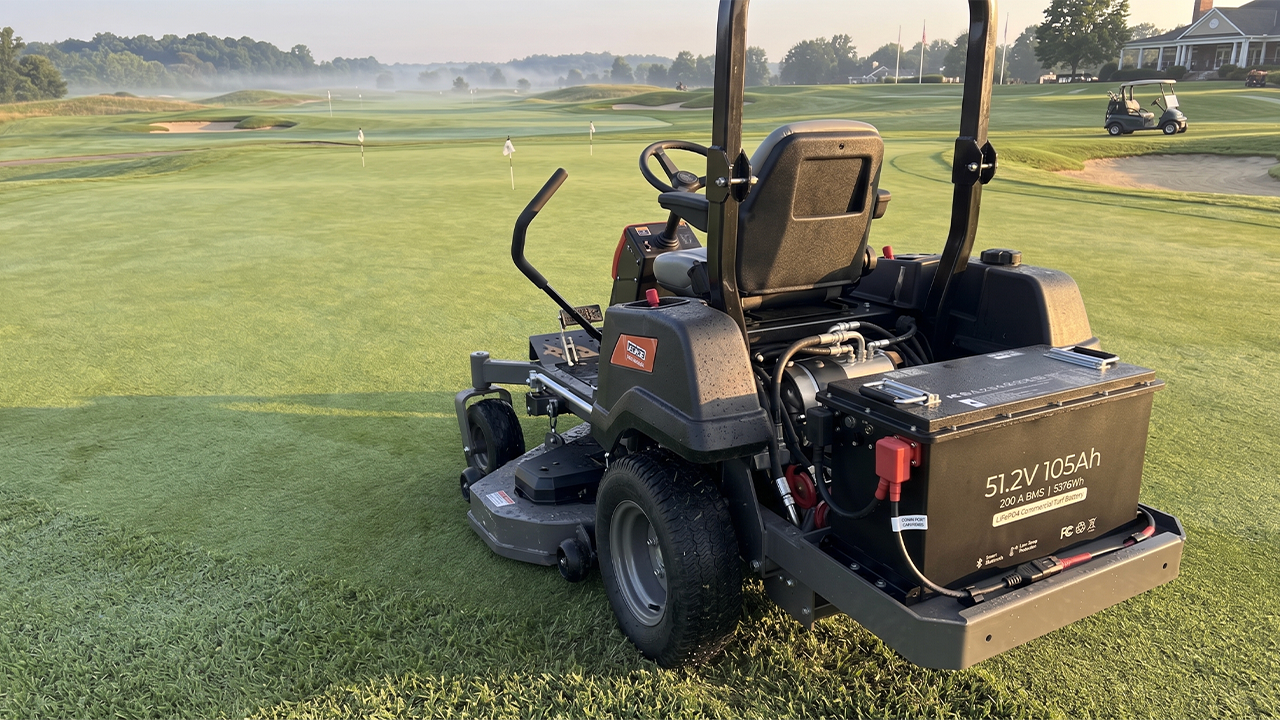

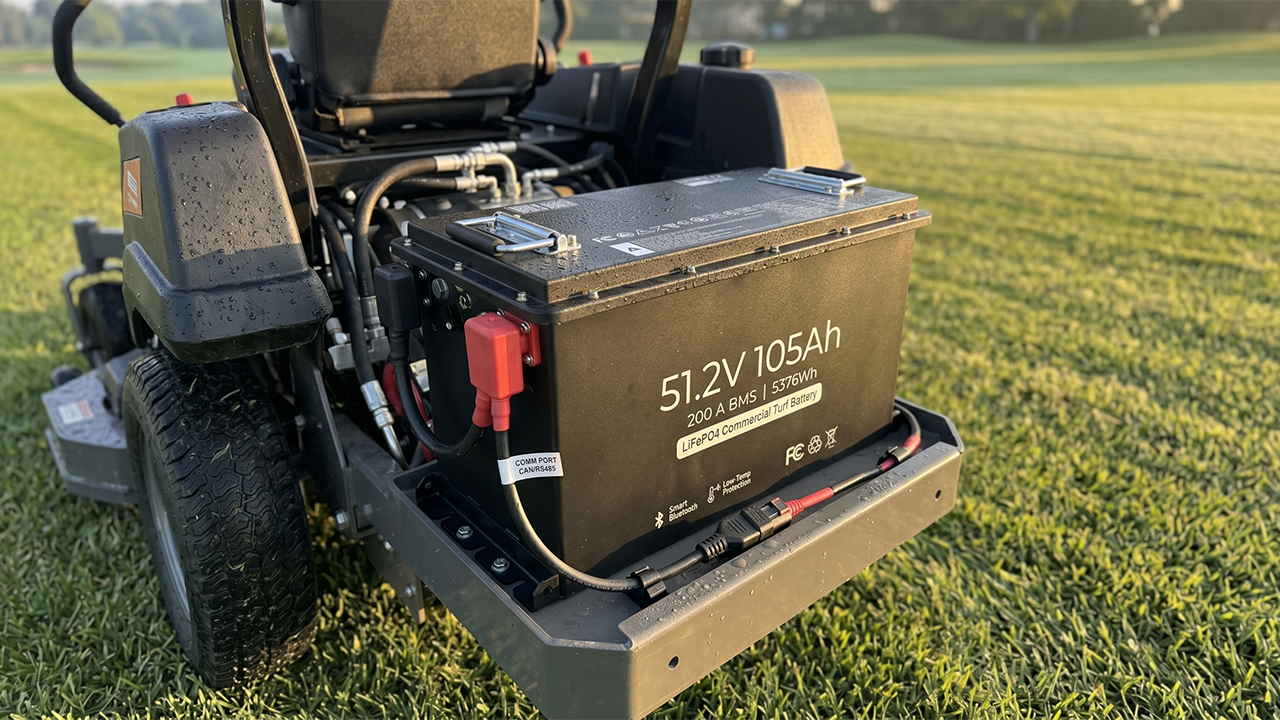

The W48105 Mower-Series is the definitive lithium upgrade for professional zero-turn mowers, stand-on mowers, and garden tractors. Engineered to handle the grueling duty cycles of commercial landscaping, this 5.38 kWh system provides the consistent, high-amp power required to maintain blade speed in thick grass, while shedding significant weight to reduce turf compaction and increase maneuverability.
【 Feature Blocks 】:
✓ High-Torque Blade Start (350A Peak Buffer)
Engaging heavy cutting blades creates a massive instantaneous load. While standard batteries might trip their BMS during startup, the W48105 is calibrated to sustain a 350A peak pulse for 12 seconds. This ensures a smooth, powerful blade engagement even in dense, overgrown grass, preventing nuisance shutdowns and keeping your operation moving.
✓ Vibration-Proof Prismatic Architecture
Mowing decks generate constant, high-frequency vibration that can fatigue inferior batteries. By utilizing Tier-1 Grade-A Prismatic Cells and laser-welded internal busbars, the W48105 offers superior structural integrity over cylindrical alternatives. This robust internal construction eliminates the risk of loose connections, ensuring long-term reliability in the harshest terrain.
✓ IP65 Rated: Dust & Wash-down Protection
Landscaping is a dirty job. Our IP65-rated sealed enclosure is purpose-built to withstand the extreme dust of dry summer mowing and the moisture of morning dew. More importantly, it allows for safe equipment wash-downs, protecting the sensitive BMS and lithium cells from water ingress during routine maintenance and cleaning.
✓ Extended Runtime for Large Acreage
Maximize your productivity with 5.38 kWh of usable energy. Designed to support extended mowing sessions, this pack delivers stable voltage throughout the entire discharge cycle—meaning no loss of blade tip speed as the battery gets lower. Monitor your status in real-time via Bluetooth Smart-App, ensuring you always have enough "juice" to finish the job.
